Specifications

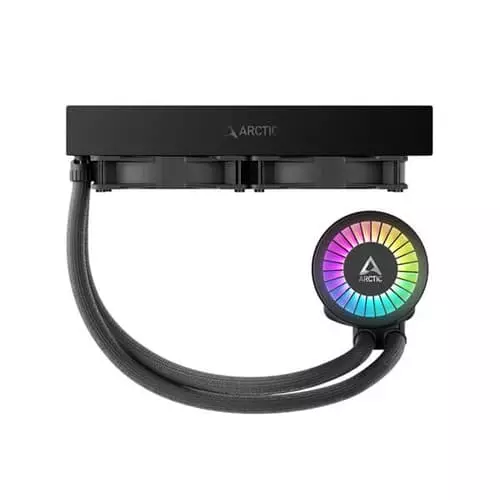

Model Name: Liquid Freezer III 240 A-RGB (ACFRE00142A)
Color: Black
Compatibility
Intel: LGA1700
AMD: AM5, AM4
Thermal Interface: MX-6 (0.8 g)
Operating Ambient Temperature: 0–40°C
Unit Weight: 1490 g
Connectors
All-In-One: 4-Pin PWM
LED Connector: 3-Pin ARGB
Splitter: 3 × 4-Pin PWM
Pump
Speed: 800–2800 RPM (PWM)
Current / Voltage: 0.35 A / 12V DC
Cold Plate: Copper, Micro-Skived Fins
Tubing
Length: 450 mm
Diameter: Outer 12.4 mm / Inner 6.0 mm
Radiator
Material: Aluminum
Dimensions: 277 × 120 × 38 mm
VRM Module
VRM Fan: 400–2500 RPM (PWM)
Current / Voltage: 0.05 A / 12V DC
Radiator Fans
Model: 2 × P12 PWM PST ARGB
Speed: 200–2000 RPM
Airflow: 48.82 CFM (82.91 m³/h)
Static Pressure: 1.85 mm-H₂O
Bearing: Fluid Dynamic
Connector: 4-Pin PWM
ARGB Lighting
LEDs: 12-zone ARGB
Voltage: 5V DC
Cable Length: 40 mm + 80 mm splitter
Connector: 3-Pin ARGB + 3-Pin Plug
Packaging
Dimensions: 294 × 171 × 142 mm
Weight: 1.925 kg
Warranty: 6 Years
