Specifications

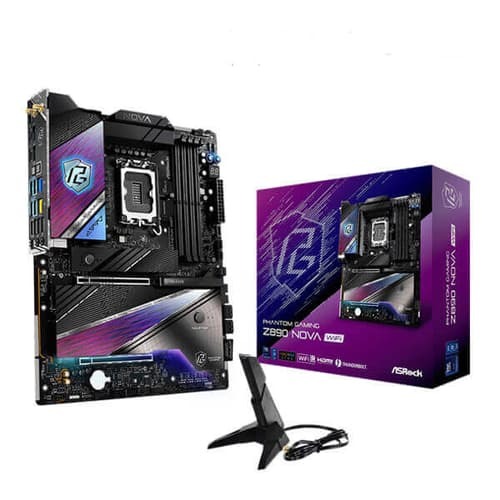

Model: ASRock Phantom Gaming Z890 Nova WiFi
Platform: Intel
Socket: LGA1851
CPU Support: Intel Core Ultra Series
Chipset: Z890
Memory
Supported Type: DDR5
Max Memory: 256GB
Speed Support: Up to 9600+
Channel Support: Dual Channel
Memory Features: Un-buffered, CUDIMM, Intel XMP 3.0
Graphics Ports
1 × HDMI
2 × Thunderbolt 4 (Display & USB4 support)
Expansion Slots
CPU:
• 1 × PCIe 5.0 x16 (x16 mode)*
Chipset:
• 1 × PCIe 4.0 x16 (x4 mode)
• 1 × M.2 (Key-E) WiFi/BT slot
*PCIe bifurcation supported via riser cards
Wireless Networking
WiFi 7
Bluetooth 5.4
Back Panel I/O
2 × Thunderbolt 4 Type-C
4 × USB 3.2 Gen2 Type-A
4 × USB 3.2 Gen1
2 × USB 2.0
2 × RJ-45 LAN
1 × HDMI
Optical S/PDIF Out
Audio Jacks (Gold plated)
BIOS Flashback / Clear CMOS Buttons
Antenna Ports
Internal I/O & Connectivity
• 2 × USB 3.2 Gen1 headers
• 2 × USB 2.0 headers
• USB-C 20Gbps Front Panel header
• Multiple fan / pump headers
• RGB & Addressable LED headers
• TPM, Debug LED, Power/Reset buttons
• 2 × 8-pin CPU + 24-pin ATX power
Storage Support
NVMe boot support
(M.2 disable/priority rules per slot)
Cooling Support
Smart Fan Speed Control across CPU, Chassis, AIO & Water Pump headers
Form Factor: ATX
Warranty: 3 Years
