Specifications

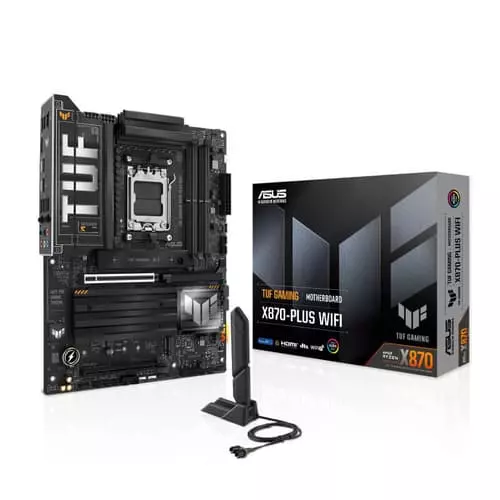

Model: Asus TUF Gaming X870-Plus WiFi
Platform: AMD
Socket: AM5
CPU Support: Ryzen 9000 / 8000 / 7000 Series
Chipset: X870
Memory
Supported Type: DDR5
Max Memory: 256GB
Memory Speed: Up to 8000+
Channel Support: Dual Channel
Memory Features: ECC & Non-ECC (Un-buffered DIMM), AMD EXPO, ASUS AEMP
Graphics Ports
1 × HDMI
2 × USB4 (Display capable depending on CPU)
Expansion Slots
AMD Ryzen 9000 / 7000 CPUs
• 1 × PCIe 5.0 x16 (x16 mode)
AMD Ryzen 8000 CPUs
• 1 × PCIe 4.0 x16 (x8/x4 mode)
X870 Chipset
• 1 × PCIe 4.0 x16 (x4 mode)
Wireless Networking
WiFi 7
Bluetooth 5.4
Back Panel I/O
2 × USB4 (40Gbps, Type-C)
3 × USB 10Gbps (Type-A)
4 × USB 5Gbps (Type-A)
1 × USB 2.0 (Type-A)
1 × HDMI
1 × Wi-Fi module
1 × Realtek 2.5Gb Ethernet
5 × Audio jacks
1 × BIOS FlashBack button
Internal I/O & Storage
• 4 × M.2 (Key-M)
• 2 × SATA 6Gb/s
• 1 × USB 20Gbps Type-C (30W PD Fast-Charge)
• USB 5Gbps & USB 2.0 headers
• Multiple fan / pump headers
• Addressable RGB headers
Cooling & Power
1 × CPU Fan
1 × CPU OPT Fan
1 × AIO Pump
4 × Chassis Fan
1 × W_PUMP+
Power: 24-pin ATX + 2 × 8-pin CPU
Form Factor: ATX
Warranty: 3 Years
