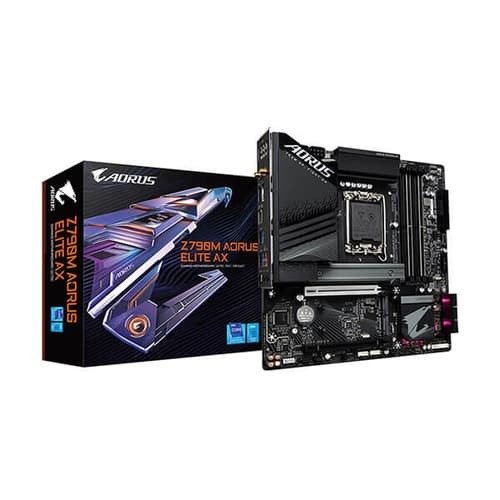

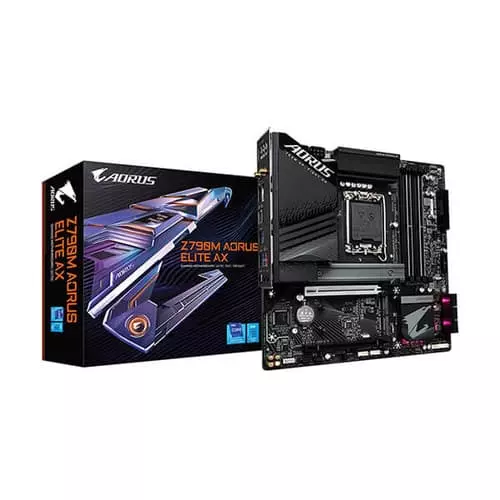

Gigabyte Z790M Aorus Elite AX DDR5 WiFi Motherboard – Intel LGA1700 mATX

✅ Specifications

Platform: Intel
Socket: LGA1700
Chipset: Z790
CPU Support: 14th Gen / 13th Gen / 12th Gen Intel Core, Pentium Gold, Celeron

Form Factor: Micro-ATX

Memory Type: DDR5
Memory Channels: Dual Channel
Max Memory Support: 192GB
Memory Speed: Up to 7600 MHz
Memory Features: XMP Support, ECC & Non-ECC UDIMM (Non-ECC Mode)

Expansion Slots:
PCIe 5.0 x16 (CPU)
PCIe 4.0 x4 (Chipset)

Graphics Output:
1 × HDMI
1 × DisplayPort

Wireless Connectivity:
Wi-Fi 6E
Bluetooth 5.3

Back Panel I/O:
USB Type-C (USB 3.2 Gen 2x2)
USB 3.2 Gen 2 Type-A
USB 3.2 Gen 1
USB 2.0
HDMI 2.0
DisplayPort
RJ-45 LAN
Optical S/PDIF
Audio Jacks

Internal Connectors:
24-pin ATX Power
8-pin + 4-pin CPU Power
M.2 Slots
SATA 6Gb/s Ports
USB Headers
RGB & ARGB Headers
TPM Header
Thunderbolt Add-in Card Headers
Q-Flash Plus & Clear CMOS

Warranty: 3 Years
