Specifications
Socket Compatibility
AMD: AM4, AM5 (backplate required)
Intel: LGA1700, LGA1200, LGA115x, LGA20xx (LGA2066 / LGA2011 square ILM)
Heatsink Dimensions (without fan)
Height: 160 mm
Width: 150 mm
Depth: 135 mm
Weight: 980 g
Dimensions (with fans)
Height: 165 mm
Width: 150 mm
Depth: 161 mm
Weight: 1320 g
Materials
Copper (base & heat pipes), Aluminum fins, Soldered joints, Nickel plating

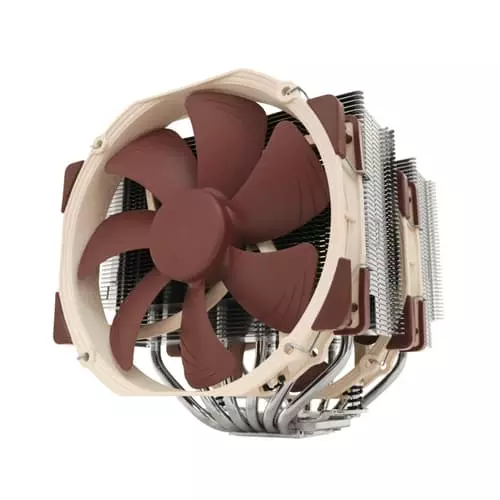

Design
Dual-tower heatsink, High-performance cooling
Fan Model
2 × Noctua NF-A15 PWM
Fan Specs
Max Speed: 1500 RPM
Max Speed w/ L.N.A: 1200 RPM
Minimum Speed: 300 RPM
Max Airflow: 140.2 m³/h
Max Airflow w/ L.N.A: 115.5 m³/h
Max Noise: 24.6 dB(A)
Noise w/ L.N.A: 19.2 dB(A)
Bearing Type: SSO2
Voltage: 12V
MTTF: >150,000 hours
Included Accessories
2 × NF-A15 Fans
Low-Noise Adapters
PWM Splitter Cable
NT-H1 Thermal Compound
SecuFirm2 Mounting Kit
Metal Badge
Warranty: 6 Years
