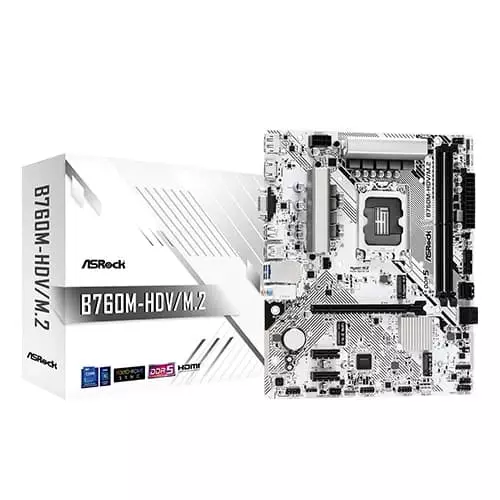

ASRock B760M HDV/M.2 Motherboard – LGA1700 | DDR5 Support | PCIe 4.0 | HDMI & DisplayPort

✅ Specifications

Model: B760M HDV/M.2
Socket Type: LGA1700
Chipset: B760
CPU Support: 14th Gen, 13th Gen, 12th Gen
Memory Type: DDR5
Max Memory Support: 128GB
Memory Speed: Up to 7200+ MHz (OC)
Graphics Ports:

• 1 x HDMI 2.1

• 1 x DisplayPort 1.4

• 1 x D-Sub

Expansion Slots:

• 1 x PCIe 4.0 x16 Slot (PCIE1)

• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)

• 1 x M.2 Socket (Key E) for Wi-Fi/BT

I/O Ports:

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen1 Type-C Port

• 3 x USB 3.2 Gen1 Type-A Ports

• 2 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• HD Audio Jacks

Internal Connectors:

• 1 x SPI TPM Header

• 1 x RGB LED Header (12V/3A, 36W LED Strip)

• 3 x Addressable LED Headers (5V/3A, 15W LED Strip)

• Multiple Fan Connectors (CPU, Chassis, Water Pump)

Form Factor: Micro-ATX
Warranty: 3 Years
