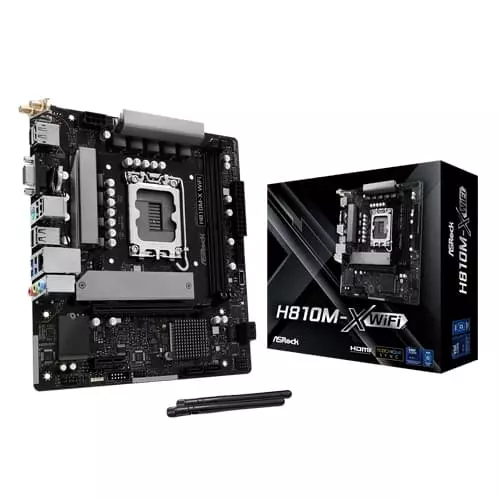

ASRock H810M-X WiFi M-ATX Motherboard – LGA1851 | DDR5 Support | WiFi & Bluetooth

✅ Specifications

Model: H810M-X WiFi
Socket Type: LGA1851
Chipset: H810
CPU Support: Core Ultra Processors
Memory Type: DDR5
Max Memory Support: 128GB
Memory Speed: Up to 6400 MHz
Graphics Ports:

• 1 x HDMI

• 1 x DisplayPort

• 1 x D-Sub

Expansion Slots:

• 1 x PCIe 4.0 x16 Slot (PCIE1)

• 1 x PCIe 4.0 x1 Slot (PCIE2)

• 1 x M.2 Socket (Key E) for WiFi/BT PCIe Module

Wireless Networking: WiFi, Bluetooth 5.0

I/O Ports:

• 1 x PS/2 Mouse/Keyboard Port

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 2 x USB 3.2 Gen 1 Ports

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• HD Audio Jacks

Internal Connectors:

• 1 x SPI TPM Header

• 1 x RGB LED Header

• 2 x Addressable LED Headers

• Multiple Fan Headers (CPU & Chassis)

• 1 x USB 3.2 Gen 1 Header

• 1 x Front Panel USB 3.2 Gen 1 Type-C Header

• 1 x 24-pin ATX Power Connector

• 1 x 8-pin 12V Power Connector

Form Factor: Micro-ATX
Warranty: 3 Years
