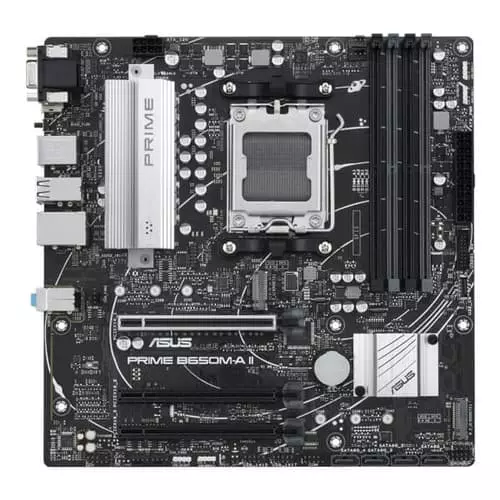

Asus Prime B650M-A II-CSM M-ATX Motherboard – AM5 | DDR5 Support | PCIe 4.0 | 192GB Max Memory

✅ Specifications

Model: B650M-A II-CSM
Socket Type: AM5
Chipset: B650
CPU Support: Ryzen 9000, 8000, 7000 Series
Memory Type: DDR5
Max Memory Support: 192GB
Memory Speed: Up to 7600+ MHz
Graphics Ports:

• 1 x DisplayPort

• 1 x VGA

• 1 x HDMI

Expansion Slots:

• 1 x PCIe 4.0 x16 Slot (x16 mode for Ryzen 9000/7000)

• 1 x PCIe 4.0 x16 Slot (x8/x4 mode for Ryzen 8000)

• 2 x PCIe 4.0 x16 Slots (x1 mode)

I/O Ports:

• 2 x USB 3.2 Gen 2 (5Gbps, Type-A)

• 2 x USB 3.2 Gen 1 (5Gbps, Type-A)

• 4 x USB 2.0 Ports (Type-A)

• 1 x DisplayPort

• 1 x VGA Port

• 1 x HDMI Port

• 1 x Realtek 2.5Gb Ethernet Port

• 3 x Audio Jacks

• 1 x BIOS FlashBack Button

• 1 x PS/2 Keyboard/Mouse Combo Port

Internal Connectors:

• 2 x M.2 Slots (Key M)

• 4 x SATA 6Gb/s Ports

• 1 x USB 3.2 Gen 1 Header (supports USB Type-C®)

• 1 x Addressable Gen 2 Header

• 1 x Aura RGB Header

• 1 x SPI TPM Header (TPM 2.0 Support)

Form Factor: Micro-ATX
Warranty: 3 Years
