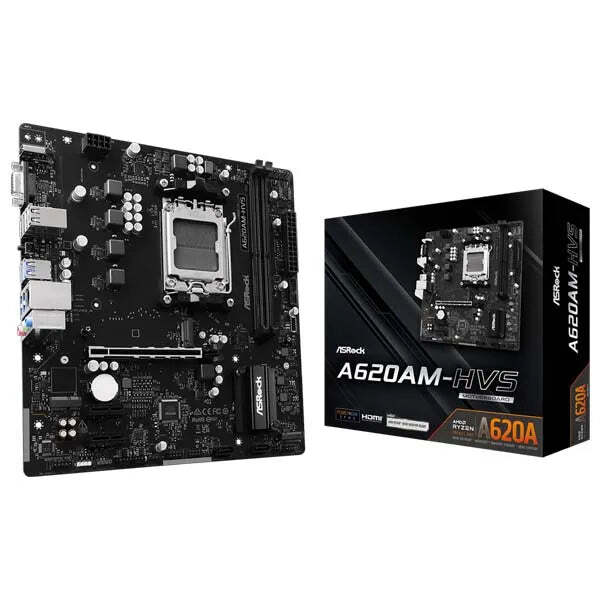

ASRock A620AM-HVS AM5 Micro-ATX Motherboard – AMD Ryzen 7000 Series | DDR5 | PCIe 4.0 | M.2

Asrock A620AM-HVS AM5 Micro ATX Motherboard Feature Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Dr.MOS Power Design, 2oz PCB 2 x DDR5 DIMMs Supports Dual Channel, up to 6800+ (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI, 1 D-Sub Realtek ALC897 7.1 CH HD Audio Codec 1 Hyper M.2 (PCIe Gen4x4) 1 Ultra M.2 (PCIe Gen3x4 & SATA3) 2 SATA3 1 USB 3.2 Gen1 Type-C (Front) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 8 USB 2.0 (4 Rear, 4 Front) Realtek Gigabit LAN Supports BIOS Flashback Built to deliver reliable performance with versatile features, perfect for daily tasks. Dr. MOS Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability. 2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. High Speed M.2 Solution Hyper M.2 Gen4 x4 Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Intelligent Cooling Design PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation. ① CPU Fan Connector② Chassis Fan Connector Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. POLYCHROME RGB This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. SignalRGB SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included. Post Status Checker Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance. Unique Features Superb Productivity: Dual Channel DDR5, Rock-Solid Durability: 4+1+1 Power Phase with Dr.MOS for Vcore, EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer, EZ Troubleshooter: ASRock Post Status Checker CPU Support AMD Socket AM5 Ryzen 9000, 8000, 7000 Series Processors Chipset AMD A620A Memory Support Dual Channel DDR5, 2 × DDR5 DIMM slots, non-ECC un-buffered, up to 6800+ MT/s (OC), Max 128GB, Supports XMP and EXPO BIOS 256Mb AMI UEFI Legal BIOS with GUI support Graphics Output Integrated AMD RDNA graphics (CPU-dependent), 1 × HDMI 2.1 (4K @ 120Hz), 1 × D-Sub (1920×1080 @ 60Hz) Audio 7.1 CH HD Audio (Realtek ALC897) LAN Gigabit LAN (Realtek RTL8111H), Bandwidth Control, User Interface, Network Stats, Priority Modes Expansion Slots CPU: 1 × PCIe 4.0 x16, Chipset: 2 × PCIe 3.0 x1, 1 × M.2 Key E (2230 Wi-Fi/BT), 15μ Gold VGA PCIe Slot Storage Interface CPU: 1 × Gen4x4 M.2 (2280), Chipset: 1 × Gen3x4 & SATA3 M.2 (2260/2280), 2 × SATA3 6Gb/s RAID Support SATA RAID 0, 1, NVMe RAID 0, 1, 10 (RAID 10 requires expansion card) USB Ports CPU: 3 × USB 3.2 Gen1 Type-A (Rear), Chipset: 1 × USB 3.2 Gen1 Type-C (Front), 3 × USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 8 × USB 2.0 (4 Rear, 4 Front) Internal Connectors Power LED & Speaker, 1 × RGB Header, 3 × ARGB Headers, 1 × CPU Fan (4-pin), 3 × CHA/WP Fans (4-pin), 1 × 24-pin ATX, 1 × 8-pin 12V, Front Audio, 2 × USB 2.0 Headers, 1 × USB 3.2 Gen1 Header, 1 × USB 3.2 Gen1 Type-C Header Rear I/O Ports 2 × Antenna Mount Points, 1 × D-Sub, 1 × HDMI, 4 × USB 3.2 Gen1 Type-A, 4 × USB 2.0, 1 × RJ-45 LAN, 1 × BIOS Flashback Button, HD Audio Jacks: Line-In, Front Speaker, Microphone Software & UEFI ASRock A-Tuning Utility, Polychrome SYNC, Full HD UEFI, Auto Driver Installer, Instant Flash Accessories 1 × I/O Shield, 2 × SATA Cables, 1 × M.2 Screw Form Factor Micro ATX, 9.6" × 9.0", 24.4 cm × 22.9 cm, 2oz Copper PCB Operating System Windows 10 64-bit, Windows 11 64-bit Certifications FCC, CE, ErP/EuP Ready (requires compliant PSU) Warranty 3 Years Note Features, price, and specifications are subject to change without notice Weight 1 kg Product Type Normal color Black Brands AsRock Motherboard Size mATX Socket AM5 Chipset A620 Warranty 3 Years
