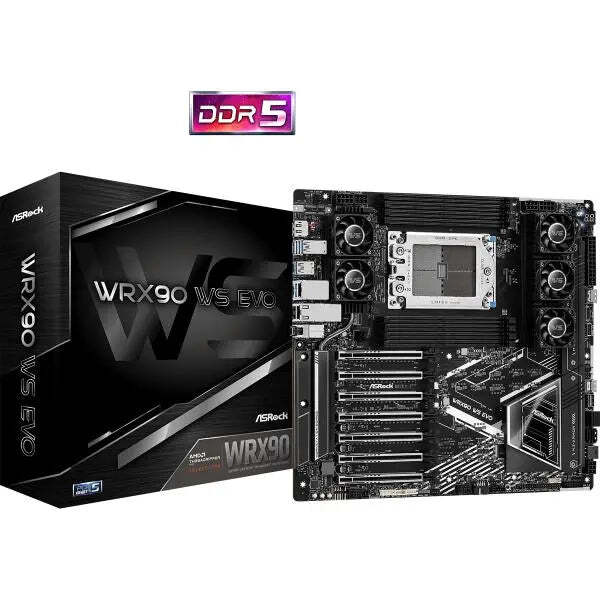

ASROCK WRX90 WS EVO MOTHERBOARD Dependable and Versatile Workstations Motherboard. Designed to deliver powerful performance, manageability and reliability for high speed computing workstations. ASROCK WRX90 WS EVO Supports AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors 18+3+3 Power Phase Design, 110A SPS Design for VCore 8 x DDR5 DIMMsSupports Eight Channel ECC Registered memory, up to 7600+ (OC) 7 PCIe 5.0 x16 Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio 4 SATA3,1 Blazing M.2 (PCIe Gen5x4),1 Hyper M.2 (PCIe Gen4x4),2 MCIO Connector (PCIe Gen5x4/ 4 SATA3),1 SlimSAS SFF-8654 Connector (PCIe Gen4x4)1 SlimSAS SFF-8654 Connector (PCIe Gen4x4/ 4 SATA3) 2 USB4 Type-C (Rear)1 USB 3.2 Gen2x2 Type-C (Front)4 USB 3.2 Gen2 Type-A(Rear)4 USB 3.2 Gen1 (2 Rear, 2 Front)4 USB 2.0 (4 Front) Intel® X710 dual 10G LAN, 1 Dedicated IPMI LAN Category Details Unique Features - PCIe Gen5 for Graphics & M.2- USB4 Type-C (40Gb/s)- Eight Channel DDR5 Support- 18+3+3 Phase 110A SPS VCore Power- Dual Intel® 10G LAN CPU Support - AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series (Socket sTR5)- Hyper BCLK Engine- Adaptive Boost, TVB, NPU Support Chipset AMD WRX90 Memory Support - 8× DDR5 DIMMs (ECC Buffered RDIMM/3DS)- Up to 2TB, up to 7600+ MHz OC- Eight Channel Architecture- XMP support- Sleep mode supported with 1/2/4 DIMMs Graphics - Aspeed AST2600 BMC Controller- 1× DisplayPort 1.1a (1920x1200 @ 60Hz, no audio) Audio - 7.1 CH HD Audio (Realtek ALC1220)- Nahimic Audio- Separate PCB layers for L/R audio- Impedance Sensing, Gold Audio Jacks LAN - Dual Intel® X710-AT2 10G LAN (100M to 10G)- Realtek RTL8211F Dedicated IPMI LAN Expansion Slots - 7× PCIe 5.0 x16 (x16/x16/x16/x16/x16/x8/x16)- 15μ Gold Contacts in VGA PCIe Slots Storage Options - 1× Blazing M.2 (Gen5x4, 128Gb/s)- 1× Hyper M.2 (Gen4x4)- 2× MCIO (PCIe Gen5x4 or 4x SATA3)- 1× SlimSAS Gen4x4 + 4× SATA3- RAID 0/1/10 NVMe & SATA USB Ports - Rear: 2× USB4 Type-C (40Gb/s), 4× USB 3.2 Gen2, 2× USB 3.2 Gen1- Front: 1× USB 3.2 Gen2x2 Type-C, 2× USB 3.2 Gen1, 4× USB 2.0 Cooling & Fan - 1× CPU Fan (1A), 1× CPU/Water Pump (2A), 3× Chassis/Water Pump (2A)- Thermistor, Fan Auto Detection, Smart Fan Speed Control Power Connectors - 1× 24-pin ATX, 1× 3-pin ATX, 2× 8-pin ATX 12V (for board), 2× 6-pin PCIe 12V (for board), 2× 6-pin GFX 12V (for GPUs) Internal I/O - 2× SGPIO, IPMI, PSU/BMC SMBus, COM, Front VGA, NMI Button, Debug LED, Reset, Power, Clear CMOS, RGB + 2× ARGB Headers Rear I/O Ports - 1× DisplayPort 1.1a- 2× USB4 Type-C (PD up to 27W)- 4× USB 3.2 Gen2- 2× USB 3.2 Gen1- 2× 10G LAN- 1× IPMI LAN- SPDIF + Audio Jacks Software & BIOS - ASRock Polychrome Sync- Auto Driver Installer, Instant Flash- Full HD UEFI BIOS with GUI Accessories - 4× SATA Cables- 2× M.2 Screws + 2 Standoffs- 2× Thermistor Cables- Multi PSU Adaptor- I/O Shield, Manual Form Factor EEB (12.0" × 13.0" / 30.5 cm × 33.0 cm)- 14-layer PCB, 2oz Copper PCB OS Support Windows® 11 64-bit Certifications FCC, CE, ErP/EuP, CEC Tier II Ready Weight 1 kg Brands AsRock Motherboard Size EEB Chipset WRX90 Socket sTR5 Memory Series DDR5
Non-returnable
Rs.95,989.00 Rs.194,900.00
