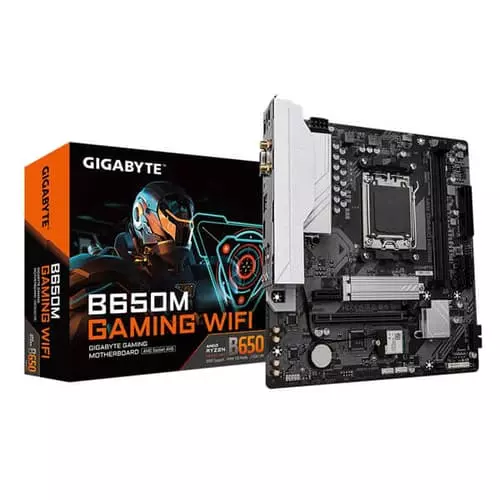

Gigabyte B650M Gaming WIFI M-ATX Motherboard – AM5 | DDR5 | PCIe 4.0 | WiFi & Bluetooth

✅ Specifications

Model: B650M Gaming WIFI
Socket Type: AM5
Chipset: B650
CPU Support: Ryzen 9000, 8000, 7000 Series
Memory Type: DDR5
Max Memory Support: 128GB
Memory Speed: Up to 6400 MHz
Graphics Ports:

• 1 x D-Sub

• 1 x HDMI

Expansion Slots:

• 1 x PCI Express x16 Slot (PCIe 4.0)

• 1 x PCI Express x1 Slot (PCIe 3.0)

• 1 x M.2 Socket 3 (for Wi-Fi/BT PCIe module)

Wireless Networking: Wi-Fi, Bluetooth 4.2

I/O Ports:

• 4 x USB 2.0/1.1 Ports

• 1 x PS/2 Keyboard/Mouse Port

• 1 x D-Sub Port

• 1 x HDMI Port

• 1 x USB 3.2 Gen 1 Ports

• 1 x RJ-45 LAN Port

• 3 x Audio Jacks

Internal Connectors:

• 1 x 24-pin ATX Power Connector

• 1 x 8-pin ATX 12V Power Connector

• 1 x CPU Fan Header

• 2 x System Fan Headers

• 1 x RGB LED Strip Header

• 2 x Addressable LED Strip Headers

• 1 x Trusted Platform Module Header (TPM 2.0 Support)

Form Factor: Micro-ATX
Warranty: 3 Years
