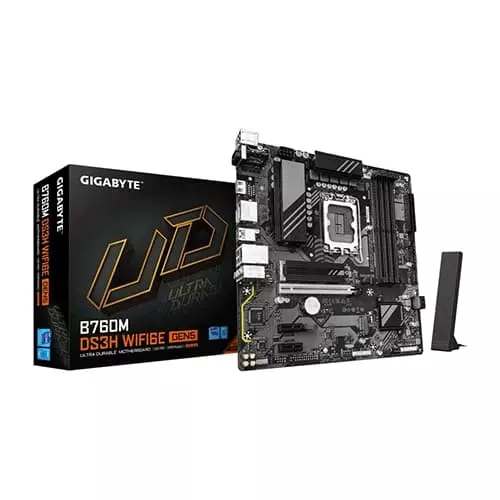

GIGABYTE B760M DS3H WiFi 6E Gen5 Motherboard – LGA1700 | DDR5 | Micro-ATX

✅ Specifications

Platform: Intel
Socket: LGA1700
Chipset: B760

CPU Support: Intel 12th, 13th, 14th Gen, Pentium Gold, Celeron

Memory Type: DDR5
Max Memory Support: 256GB
Memory Speed: Up to 7600 MHz
Memory Channels: Dual Channel
Memory Features: XMP, Non-ECC & ECC UDIMM (Non-ECC Mode)

Graphics Output:
HDMI
DisplayPort ×2

Expansion Slots:
PCIe 5.0 x16 (CPU)
PCIe 3.0 x1 ×2 (Chipset)

Wireless Connectivity: WiFi 6E, Bluetooth 5.3
LAN: RJ-45 Ethernet

Storage Support:
2 × M.2 NVMe Slots
4 × SATA 6Gb/s Ports

Back Panel I/O:
USB Type-C Gen2, USB 3.2 Gen1, USB 2.0, HDMI, DisplayPort ×2, LAN, Audio Jacks, PS/2, WiFi Antenna Ports

Internal Connectors:
24-pin ATX Power, 8-pin CPU Power, CPU & System Fan Headers, RGB & ARGB Headers, USB Headers, TPM Header, S/PDIF Header, Q-Flash Plus

Form Factor: Micro-ATX
Warranty: 3 Years
