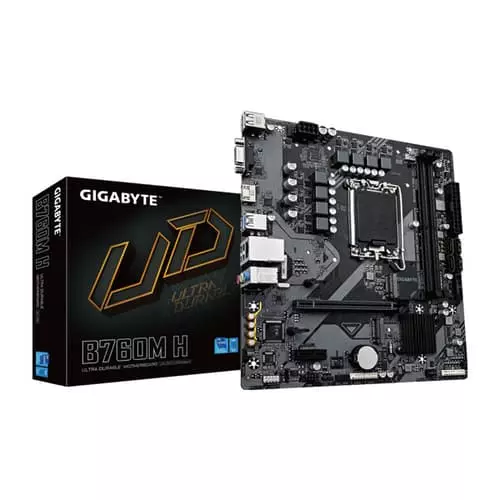

Gigabyte B760M H DDR5 M-ATX Motherboard – LGA1700 PCIe 4.0 128GB Memory Support

✅ Specifications

Model: B760M H DDR5
Socket Type: LGA1700
Chipset: B760
CPU Support: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron
Memory Type: DDR5
Max Memory Support: 128GB
Memory Speed: Up to 8000 MHz
Dual-Channel Support: Yes
Graphics Ports:

• 1 x D-Sub

• 1 x HDMI

Expansion Slots:

• 1 x PCI Express x16 Slot (PCIe 4.0)

• 1 x PCI Express x1 Slot (PCIe 3.0)

I/O Ports:

• 2 x USB 2.0/1.1 Ports

• 4 x USB 3.2 Gen 1 Ports

• 1 x RJ-45 LAN Port

• 3 x Audio Jacks

• 1 x D-Sub Port

• 1 x HDMI Port

Internal Connectors:

• 1 x 24-pin ATX Main Power Connector

• 1 x 8-pin ATX 12V Power Connector

• 2 x System Fan Headers

• 2 x M.2 Socket 3 Connectors

• 1 x Front Panel Header

• 1 x RGB LED Strip Header

• 1 x S/PDIF Out Header

• 2 x USB 2.0/1.1 Headers

• 1 x Trusted Platform Module Header

Form Factor: Micro-ATX
Warranty: 3 Years
