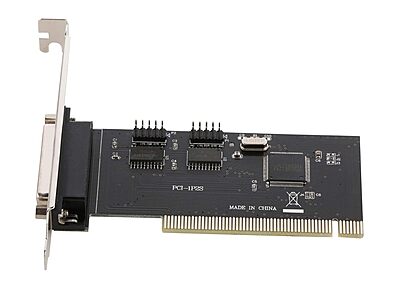

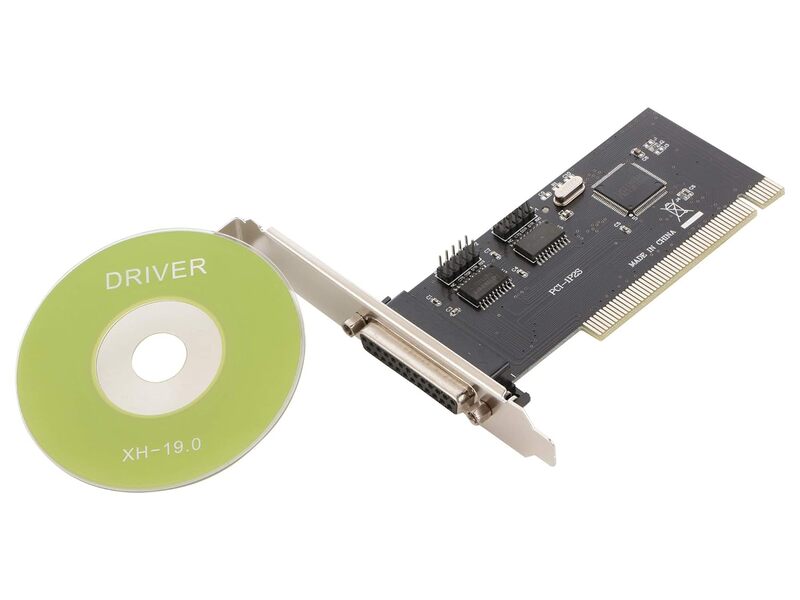

LIVE TECH PCI 2S/1P Combo – 2 Serial Ports & 1 Parallel Port Adapter | Reliable Connectivity for Legacy Systems

Product Specifications

• Brand: Live Tech
• Product Name: PCI Combo Card (2 Serial + 1 Parallel)
• Interface: PCI (32-bit, standard)
• Ports:
• Serial Ports: 2 × DB9 RS232
• Parallel Port: 1 × DB25 LPT
• Chipset: High-speed UART + Parallel Controller
• Communication Protocols:
• Serial: RS232
• Parallel: IEEE 1284 (SPP/EPP/ECP modes)
• Compatibility:
• Windows 98/ME/2000/XP/Vista/7/8/10
• Supports most legacy serial and parallel hardware
• Use Cases:
• Dot matrix & thermal printers
• Barcode scanners
• POS systems
• CNC & industrial machinery
• Legacy communication devices
• Form Factor: Standard PCI card
• Installation: Plug & Play (driver CD included if required)
• Power: Draws power from PCI slot (no external power needed)
• Features:
• Simultaneous multi-port operation
• FIFO buffers for stable data transmission
• Fully compliant with PCI 2.3 specification
• Low-profile bracket support (optional, varies by model)
