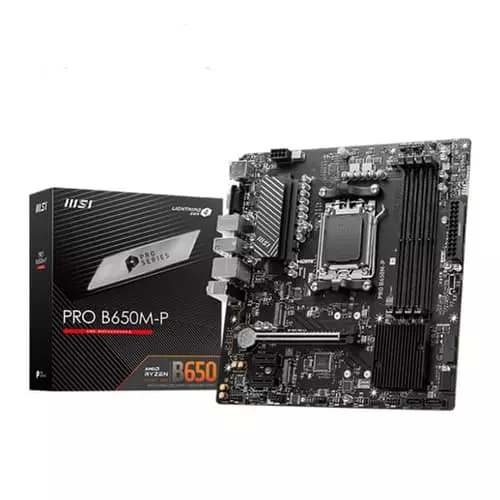

MSI Pro B650M-P M-ATX Motherboard – AM5 | DDR5 Support | PCIe 4.0 | 256GB Max Memory

✅ Specifications

Model: B650M-P
Socket Type: AM5
Chipset: B650
CPU Support: Ryzen 9000, 8000, 7000 Series
Memory Type: DDR5
Max Memory Support: 256GB
Memory Speed: Up to 7200+ MHz
Graphics Ports:

• 1 x HDMI

• 1 x DisplayPort

• 1 x VGA

Expansion Slots:

• 1 x PCI-E x16 Slot (PCIe 4.0)

• 2 x PCI-E x1 Slots (PCIe 3.0)

I/O Ports:

• 1 x HDMI

• 1 x DisplayPort

• 1 x VGA

• 1 x USB 3.2 Gen 2 (10Gbps, Type-A)

• 1 x USB 3.2 Gen 1 (5Gbps, Type-A)

• 4 x USB 2.0 Ports (Type-A)

• 1 x 2.5G LAN Port

• 3 x Audio Jacks

• 1 x Keyboard / Mouse Port

Internal Connectors:

• 1 x 24-pin ATX Power Connector

• 1 x 8-pin CPU Power Connector

• 1 x CPU Fan Header

• 1 x Pump Fan Header

• 3 x System Fan Headers

• 1 x USB 3.2 Gen 1 Header

• 2 x Addressable V2 RGB LED Connectors

• 2 x RGB LED Connectors (JRGB)

Form Factor: Micro-ATX
Warranty: 3 Years
