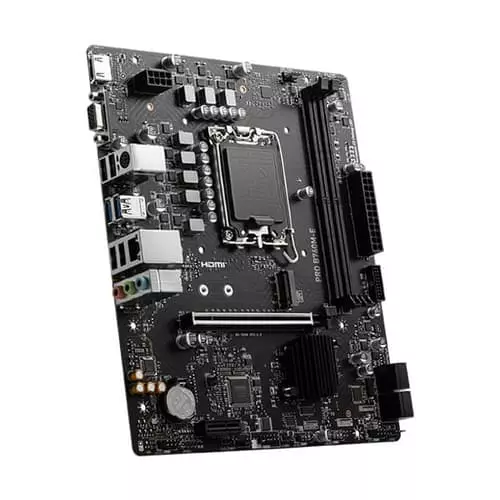

MSI Pro B760M-E Motherboard – LGA1700 | DDR5 Support | PCIe 4.0 | 128GB Memory

✅ Specifications

Model: B760M-E
Socket Type: LGA1700
Chipset: B760
CPU Support: 12th Gen, 13th Gen, 14th Gen, Pentium Gold, Celeron
Memory Type: DDR5
Max Memory Support: 128GB
Memory Speed: Up to 6400+ MHz
Dual-Channel Support: Yes
Memory Feature: Intel XMP 3.0 OC, Dual-Controller
Graphics Ports: HDMI, VGA

Expansion Slots:

• 1 x PCI-E x16 (PCIe 4.0)

• 1 x PCI-E x1 (PCIe 3.0)

I/O Ports:

• HDMI

• VGA

• USB 3.2 Gen 1 (5Gbps, Type-A)

• USB 2.0 ports

• 1 x LAN port

• Audio connectors

Internal I/O Connectors:

• 1 x Power Connector (ATX_PWR, CPU_PWR)

• 2 x System Fan Headers

• 1 x Front Panel (JFP)

• 1 x Chassis Intrusion (JCI)

• 1 x Com Port (JCOM)

• 1 x RGB LED connector

• 1 x TPM pin header (TPM 2.0 Support)

• 2 x USB 5Gbps Type-A ports

Form Factor: Micro-ATX
Warranty: 3 Years
